This system permits a direct visualization from a manhole of upstream and downstream sections of a sewer without requiring a flushing operation or having to stop the flow of effluent. SIVIP is the ideal tool to perform, at a low cost, a rapid diagnosis on the status of the sewer network: general aspect of the duct, mechanical degradation, presence of deposits, roots or penetrating lateral branches.

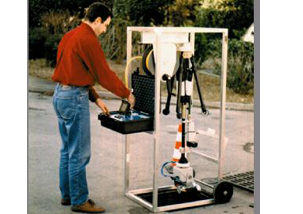

 Product Feature: —Being mobile and compact, this equipment is transportable in a light can. —The use of SIVIP requires a single operator. —Two powerful lights are aside the zoom TV camera and this assembly is mounted on a P/T device; — the camera is introduced in the manhole, up to 20 meters depth, and when reaching the axis of the duct, is stabilized by the deployment of four leaning arms. — The operator orients the camera in the axis of the duct, actions the powerful zoom and visualizes up to 40 meters of the pipe — A 180° rotation of the camera then permits the survey of the opposite direction duct. — During the inspection, the images are registered in the control unit.

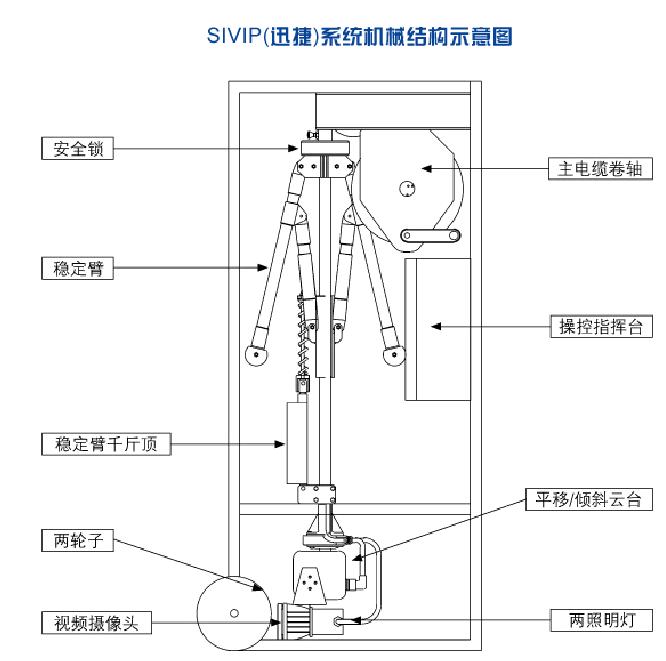

Technology feature: Aluminium frame: W: 680mm; D: 680mm; H: 1520mm, total weight:45g, Mountedon 2 wheels for displacement TV camera: Colour PAL(NTSC in option): CCD sensor 437000 pixels,Resolution:450lines, Sensitivity:1lux Lights: 1 halogen light 100 W, narrow beam angle; 1 halogen light 100W, wide beam angle Pan:350°- Tilt:+/-60° Stabilization arms: Deployement by jack, for manholes with ID from 400 to 1200 mm, Shock absorbers + torque limiter Reel: Manual (electrical in option) Umbilical cable: 20 meters long Swivelling control-command console: Joystick for P/T; Control of stabilization arms jack ,10cm LCD monitor; splash-proof; power in: 230 V ac -250W

|
