Control unit MAXIMA CS 5000

—     for all multi-wire carriages and camera probes

—     high resolution 10” colour monitor

—     handheld remote control

Video Typewriter

—indication of meters, date and time

—24 characters/12 lines, keyword memory, online help

—Compact PC-keyboard

—Serial RS232 interface for sewer software

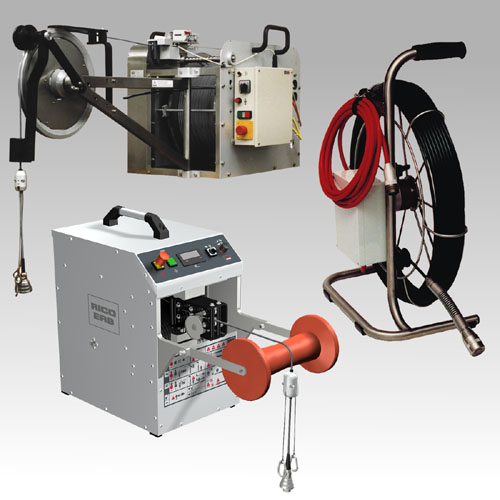

Motorized drum Package

—Cable drum KMT1002 MD

—Electric cable drum with synchronized speed control, electronic meter counter

—Integrated pulse transmitter for meter indication, cable-guided cross-run spindle

—Cable-guided cross-run spindle

—Emergency-off for cable drum and control unit

—Camera cable 150m Φ7.5mm  converted

—Strain relief MD

Camera unit

Carriage FW100 VARIA

For the use from Φ100mm, steerable through using two engines, 6 driven wheels, 4 x additional wheel from Φ150mm

Carriage FW150 (optional )

4 driven wheels, Connector for 20 Watt additional lighting, extendable by camera lift and additional wheels up to Φ500mm
