DIGIMAX complete system with control unit, data indication, motorized cable drum and camera

Control unit

High-resolution 10”colour monitor, control electronics for camera, lighting, cable drum(up to 250m cable length) and carriage, incl. manual remote control with joystick

DATA indication :

Free text display, multi-coloured in 22 lines of 40 characters each, 3 status lines for a total of 12 measured values, e.g. compact PC keyboard, serial RS232 PC interface, for connecting a drain data logging

motorized cable drum:

Cable drum KMT 2002 ED light weight  version with only 32g , 250m single-wire cable (Φ5.1mm)-self-applicable in case of damage , fully synchronized cable drum control, reversing spindle for even cable feed, electronic meter with digital display, emergency stop switch, optionally automatic or manual mode.

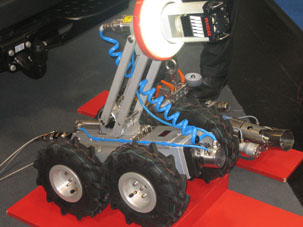

Camera unit  SR 100 ED:

Auxiliary lighting 40w for carriage FW150 ED;

With 10x optical and 4x digital zoom, pan 270°,rotation 360° without limit, lighting intensity<1 lx, lighting 24w,auto focus, automatic aperture/ white adjustment, optimum parameterisation  of the camera module, zero setting and fast positioning
